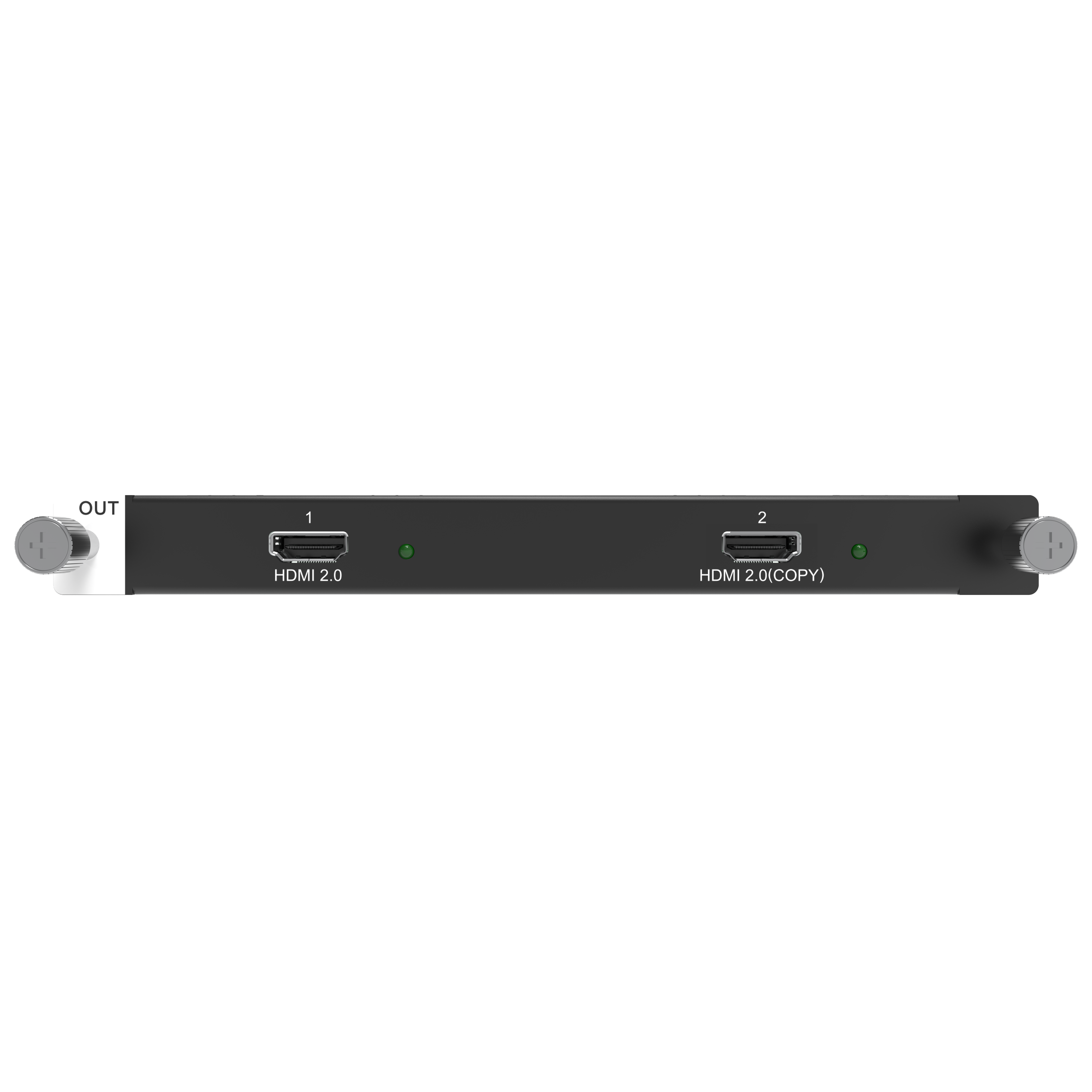

2x HDMI 2.0
− Connector 2 copies the output on connector 1.
− The connector supports the maximum resolution of
8192×1080@60Hz/4096×2160@60Hz.
− Custom resolutions:
H20 Video Wall Splicer Specifications
www.novastar.tech 17
Max. width: 8192 pixels (8192×1146@60Hz)
Max. height: 7680 pixels (1092×7680@60Hz)
− Supports 8-bit or 10-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
− Supports 144Hz output.
 Status LEDs:
− On: The output connector is connected normally.
− Off: The output connector is not connected.
Specifications:
 Weight: 500 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 21 W
